● High efficiency output 140LM/W
● 100% PMMA LGP , never yellowing
● Flicker free,IP65
● UGR < 19 available
● Dali,Push 0-10V Dimmable
● 2 Sides Edge-lit , less heat dissipation , longer lifespan
● Patent design to avoid blue light & water ripper & light spot



 Model

 Size(mm)

 Wattage(W)

 Efficacy(lm/w)

 Colour Temp(K)

 CRI

 BL-6060SW

 595x595x12

 20/24/30/36/40

 120-140

 3000/4000/5000/6000

 Ra>80/Ra>90

 BL-6262SW

 620x620x12

 20/24/30/36/40

 120-140

 3000/4000/5000/6000

 Ra>80/Ra>90

 BL-30120SW

 1195x295x12

 20/24/30/36/40

 120-140

 3000/4000/5000/6000

 Ra>80/Ra>90

 BL-60120SW

 1195x595x12

 30/40/50/60/72

 120-140

 3000/4000/5000/6000

 Ra>80/Ra>90

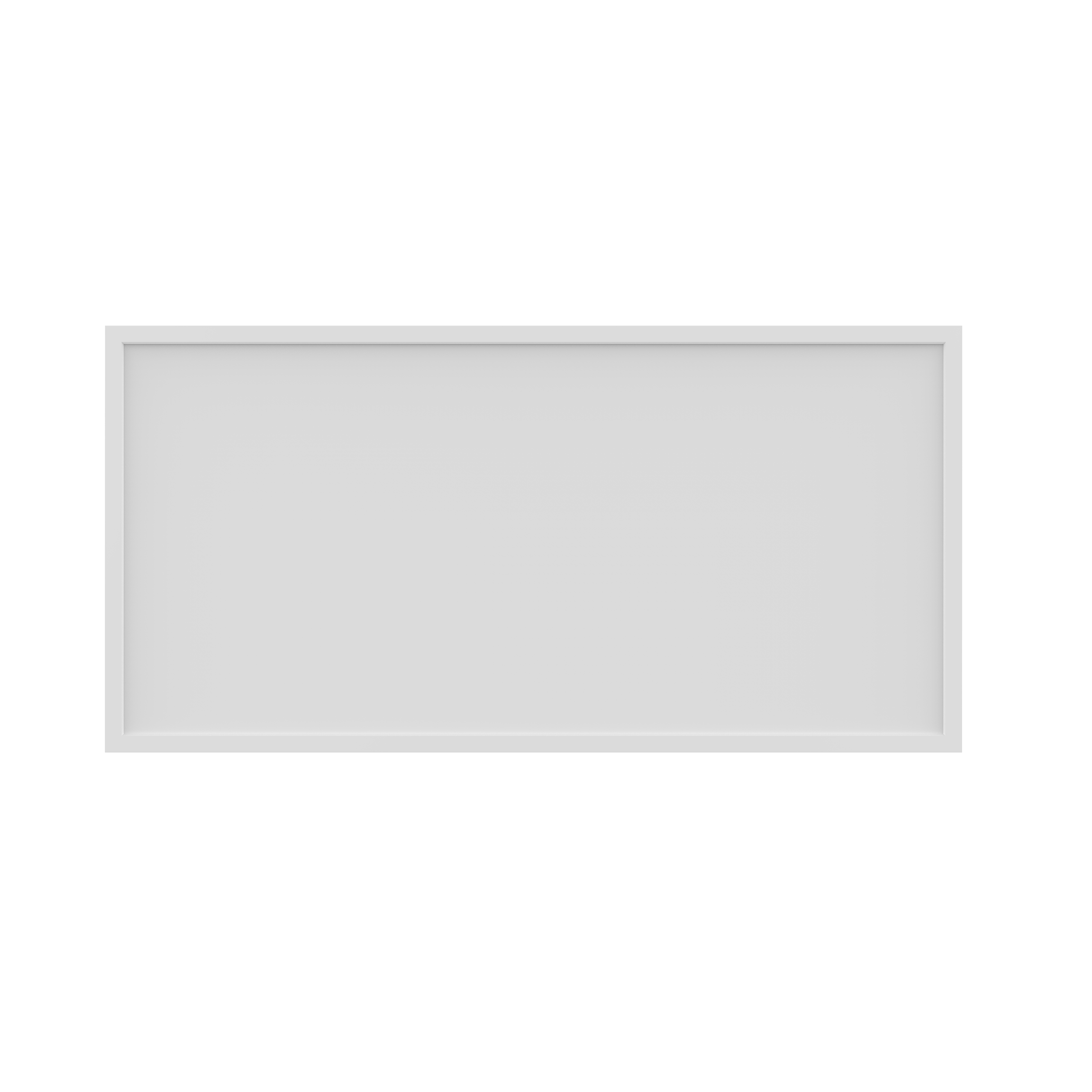

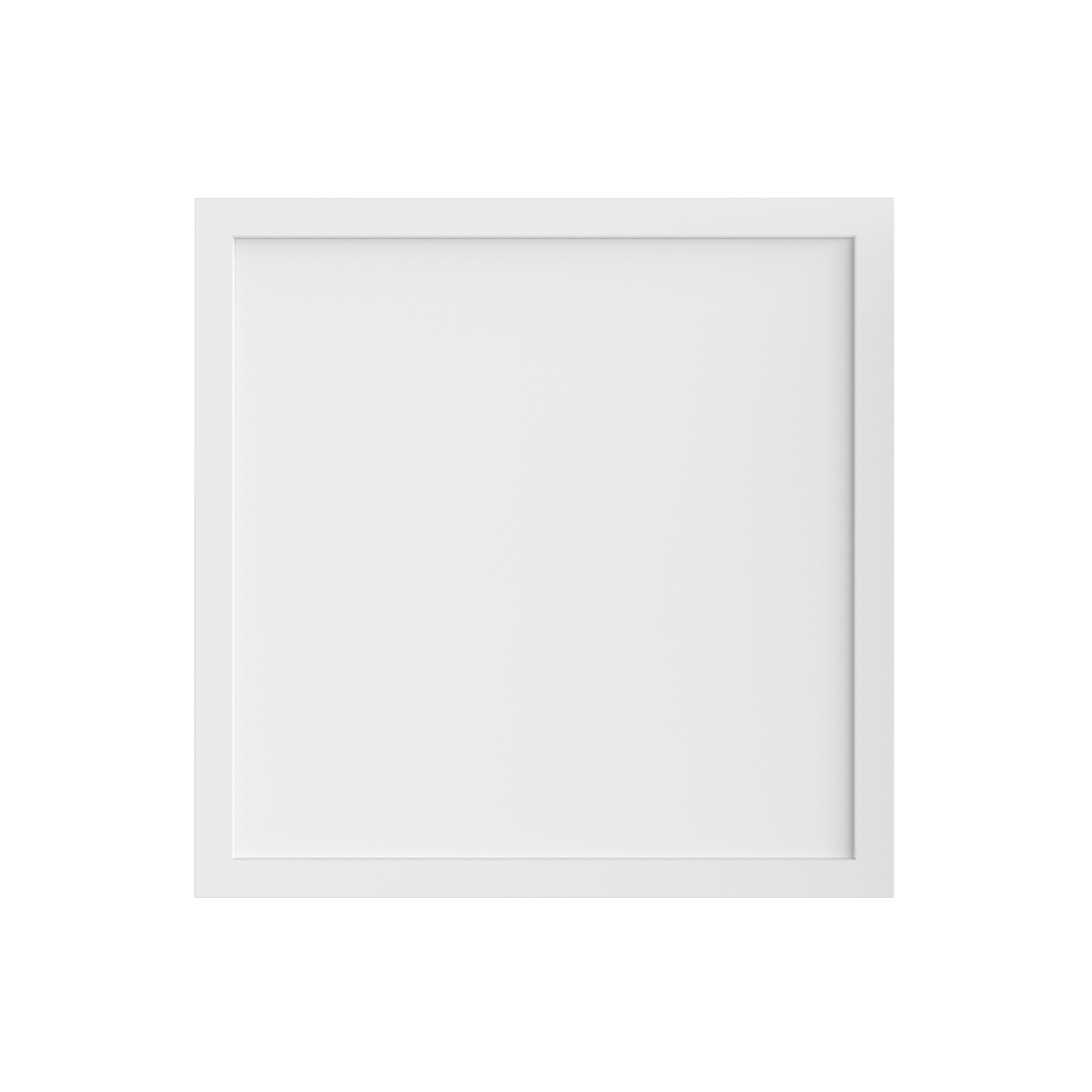

Edge-lit IP65 LED Panel(NOVA)
