● Diffierent luminescent colors can be customized according to demands
● Excellent heat dissipation design, lower heat generation
● Custom frame color available
● The width of the front border is only 4mm, which increases the luminous area of the product and minimizes the dark areas caused by the border
● Casambi,Dali,Triac,Push 0-10V dimmable
● Excellent heat dissipation design, lower heat generation
● Custom frame color available
● The width of the front border is only 4mm, which increases the luminous area of the product and minimizes the dark areas caused by the border
● Casambi,Dali,Triac,Push 0-10V dimmable
|
Model |
Size(mm) |
Wattage(W) |
Efficacy(lm/w) |
Colour Temp(K) |
CRI |
|
BL-6060-FRAMELESS |
595x595x18 |
20/24/30/36/40 |
120 |
3000/4000/5000/6000 |
Ra>80/Ra>90 |
|
BL-6262-FRAMELESS |
620x620x18 |
20/24/30/36/40 |
120 |
3000/4000/5000/6000 |
Ra>80/Ra>90 |
|
BL-30120-FRAMELESS |
1195x295x18 |
20/24/30/36/40 |
120 |
3000/4000/5000/6000 |
Ra>80/Ra>90 |
|
BL-60120-FRAMELESS |
1195x595x18 |
30/40/50/60/72 |
120 |
3000/4000/5000/6000 |
Ra>80/Ra>90 |

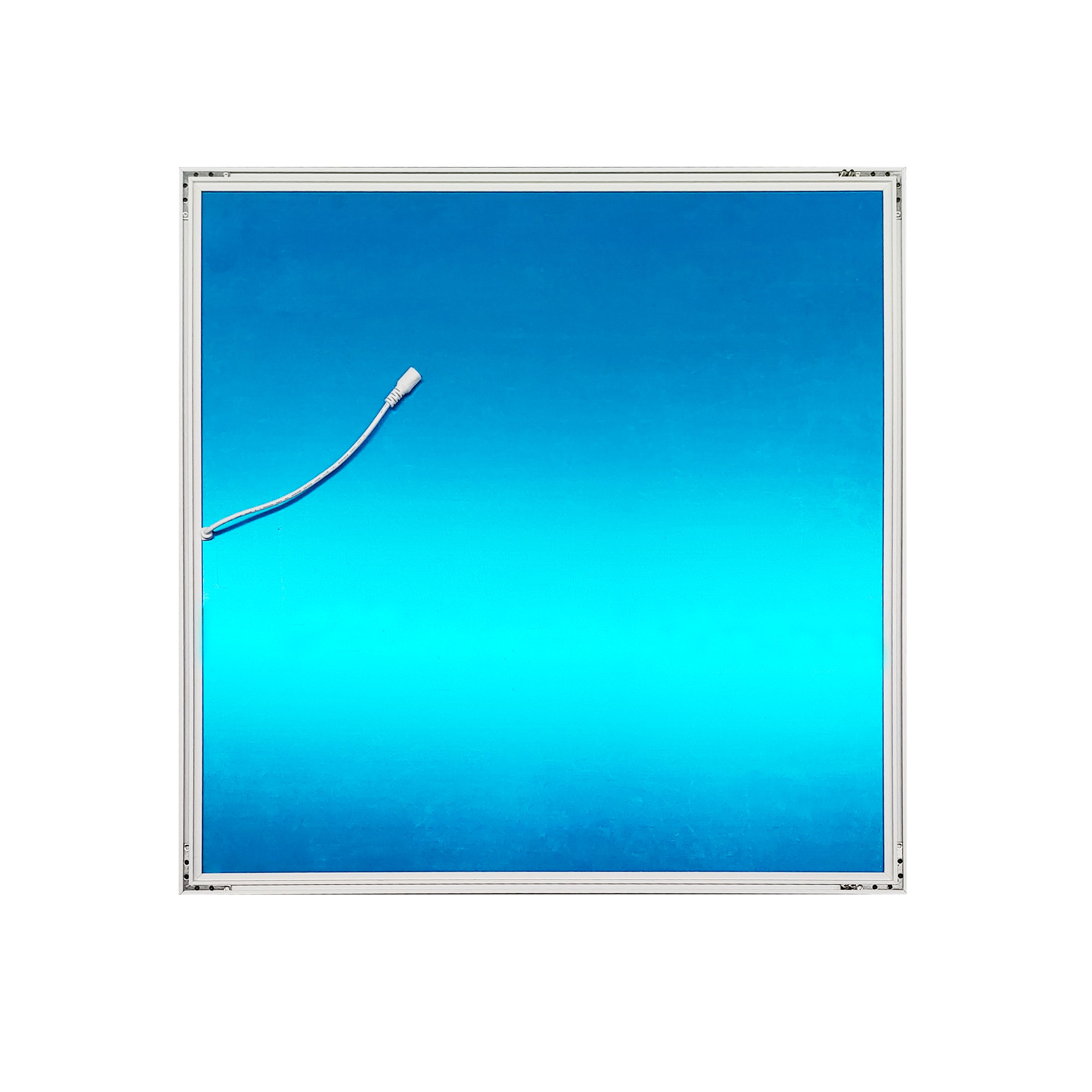

LED Panel (FRAMELESS)
